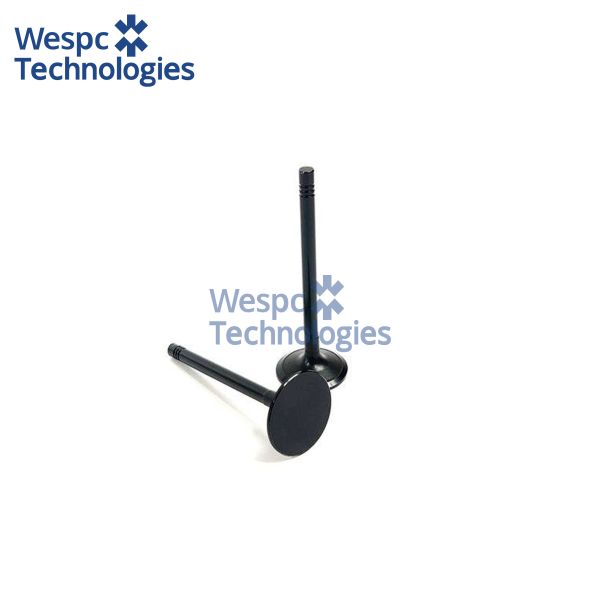

WESPC Intake Valve 3142H111 For Perkins 1103D-33T 1103D-33TA Engine

WESPC Intake Valve 3142H111 For Perkins 1103D-33T 1103D-33TA Engine

Application:

3142H111 is the inlet valve for 3-cylinder Perkins 1103D-33T, 1103D-33TA and 4-cylinder 1104D-44 / 1104D-44T diesels (3.3–4.4 L) that power JCB 3CX compact back-hoes, 45 kVA “Vista A” generators, MF 1700-series tractors and mini-excavators. It is designed to maintain volumetric efficiency >92 % at 2 800 min⁻¹ while meeting EU Stage IIIA / EPA Tier 4-final smoke limits.

Technical specifications:

Overall length 114 mm, head diameter 38 mm, stem diameter 9 mm, seat angle 30 °, margin thickness 2.2 mm, stem tip induction-hardened to 52 HRC. The valve is forged from 21-4N austenitic stainless steel, solution-treated at 1050 °C and age-hardened to 28 HRC at the head centre for creep resistance at 800 °C.

Material & performance features:

The 21-4N alloy contains 9 % Mn, 4 % Cr, 3 % Ni and 0.45 % C, providing continuous hot strength to 850 °C and resistance to lead/sulphur corrosion when low-grade fuels are used. Chrome plating reduces stem wear groove depth to <0.02 mm after 6 000 h, while the roll-burnished fillet delays thermal-fatigue cracking by 30 %.

Interchange part numbers:

PERKINS 3142H111, 3142H101, 3142A171, KMP 3142H111, FPS V3142H111, MAXIFORCE 3142H111, HY-CAPACITY HCP3142H111, FAI V3142H111, AJUSA 8103142H111, GLYCO V-Per 1103/1104, MAHLE IN-3142H111, AE 3142H111, CLEVITE V-3142H111, TOPLINE 3142H111, VMC 3142H111, MARINE D’USTRIE 3142H111, KINGSLAND 3142H111, AIC 3142H111, WDPART 3142H111.
